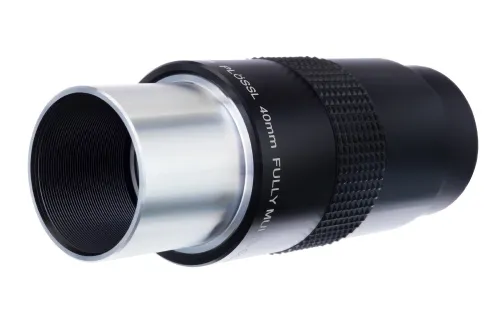

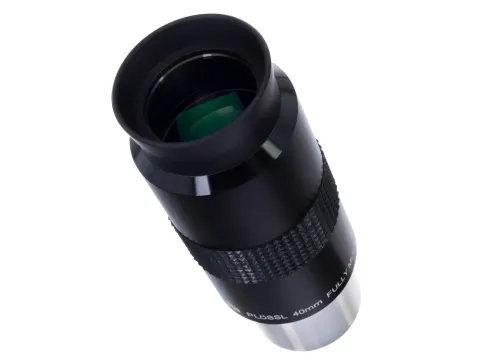

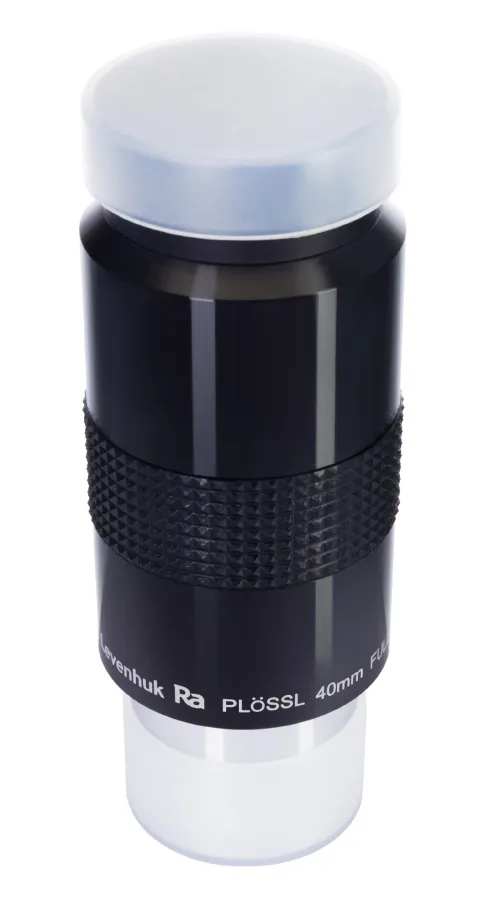

Levenhuk Plössl 40mm Eyepiece

Levenhuk Plössl 40mm Eyepiece

picture Levenhuk Plössl 40mm Eyepiece, 1
picture Levenhuk Plössl 40mm Eyepiece, 2
picture Levenhuk Plössl 40mm Eyepiece, 3
picture Levenhuk Plössl 40mm Eyepiece, 4
see all
picture Levenhuk Plössl 40mm Eyepiece, 5
picture Levenhuk Plössl 40mm Eyepiece, 6
The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 40mm. Field of view: 48°

4 elements in 2 groups, Plössl
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated
The optics coating improves the image quality
Availability
Product ID 50764
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555003795
Package size (LxWxH) 11x5x5 cm
Shipping Weight 0.2 kg
description
specifications
downloads
Description

The Levenhuk Plössl 40mm long focus eyepiece is an excellent choice for observing deep sky objects. Due to its comfortable 48° field of view, it is well suited for studying extended nebulae, galaxies, and star clusters. It also features the filter thread.

The multi-element optical design consists of fully multi-coated glass lenses. They are housed in the robust aluminum body. The rubber eyecup has a fold-down design. The eyepiece long eye relief allows for observing when wearing glasses.

The eyepiece has a 1.25" barrel diameter, so that it is compatible with most modern telescopes

Features:

  • The long focus eyepiece is ideal for deep-sky observations.
  • 48° field of view that is comfortable for searching for astronomical objects
  • Multi-element fully multi-coated glass optics
  • Long eye relief; fold-down rubber eyecup
  • 1.25'' barrel diameter; filter thread

The kit includes:

  • Eyepiece
  • Protective caps – 2 pcs
Specifications
Product ID 50764
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555003795
Package size (LxWxH) 11x5x5 cm
Shipping Weight 0.2 kg
Type standard
Optical scheme 4 elements in 2 groups, Plössl
Barrel diameter, in 1.25
Optics material optical glass
Lens coating fully multi-coated
Focal length, mm 40
Field of view, ° 48
Eye relief, mm 31
Suitable for observations while wearing glasses ✓
Eyepiece diameter, mm 1.25
Filter thread ✓
Filter thread M28.5x0.6mm
Body aluminum
Eyecup foldable, rubber
Protective caps included ✓
Operating temperature range, °C -5...+35
