Focal length: 4.7mm. Eyepiece clamp diameter: 1.25"

7 elements in 4 groups, Long Eye Relief
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Multi-coated EMD
The optics coating improves the image quality
Availability

Product ID 73774
Brand Explore Scientific
Warranty 2 years
EAN 4007922199696
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.4 kg
Description

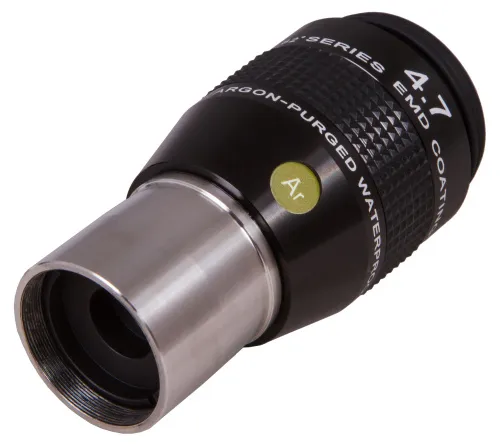

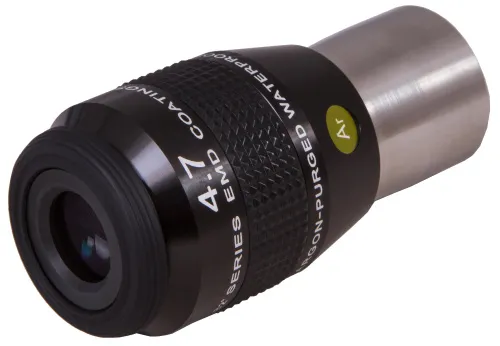

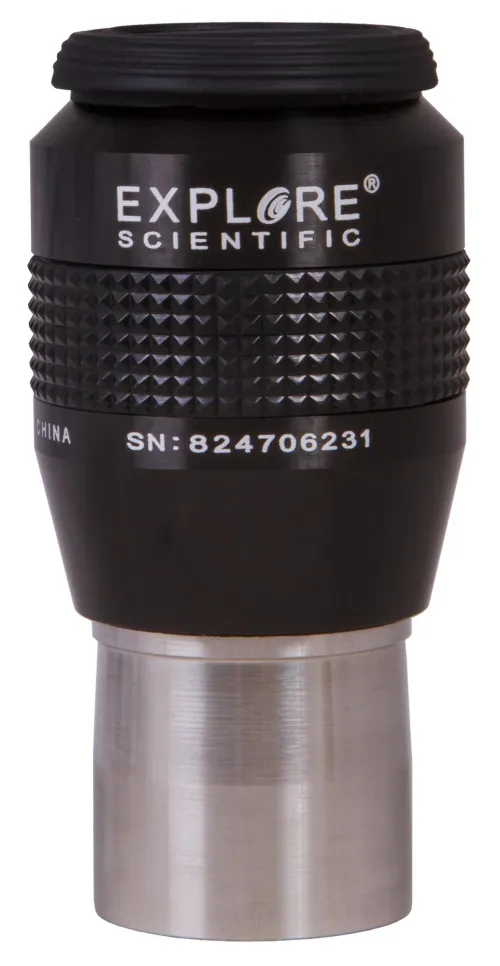

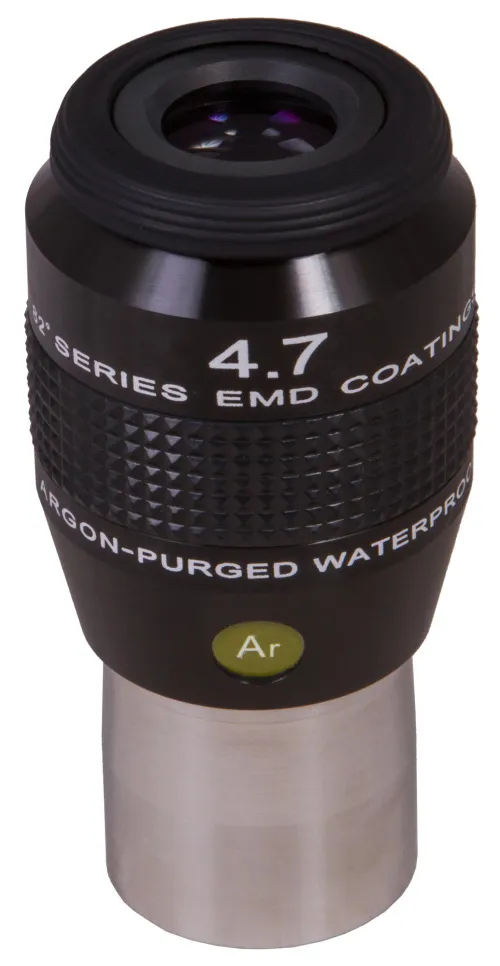

Explore Scientific 82° 4.7mm extreme wide field eyepiece is optimized to produce high contrast, high resolution, and superior flat field characteristics.

The visual effect of this eyepiece with his long eye-relief and his 82° apparent field is truly a full-immersion experience. Your eye is relaxed, allowing you to easily use the "averted vision" technique to study faint details across a huge field-of-view. Explore Scientific 82° eyepiece comes with a twist-up rubber eye-guard that raise to the desired height for the comfort of the observer, and as experienced astronomers know, eye comfort is critical when trying to observe at the visual limits of the telescope. To keep internal reflections to a minimum, all internal surfaces of the eyepiece barrel are flat black, as well as the edges of the lenses themselves to minimize the scattering of light within the lenses themselves.

Explore Scientific 82° 4.7mm is fully multi-coated and edge-blackened to produce maximum contrast.

Features:

  • Waterproof, argon purged and sealed against dust
  • Very large and sharp 82° field
  • EMD-fully multi-coated with blackened lens edges
  • All eyepieces of this series are parfocal
Specifications
Product ID 73774
Brand Explore Scientific
Warranty 2 years
EAN 4007922199696
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.4 kg
Type ultra wide-angle
Optical scheme 7 elements in 4 groups, Long Eye Relief
Barrel diameter, in 1.25
Optics material optical glass
Lens coating multi-coated EMD
Focal length, mm 4.7
Field of view, ° 82
Eye relief, mm 13.6
Field stop diameter, mm 6.9
Filter thread
Side edges blackening
Parfocal
Argon-purged
Waterproof
Eyecup rubber, foldable

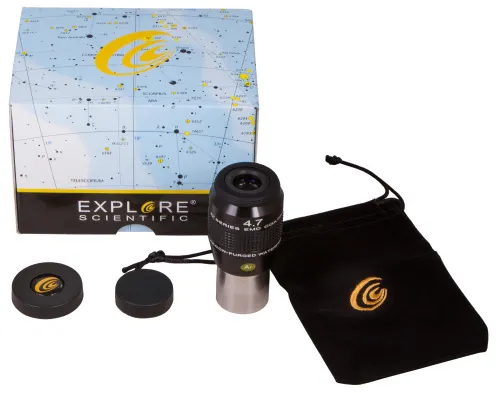

Protective caps included
Pouch/case/bag in set dust cover
