Focal length: 10mm. Eyepiece clamp diameter: 1.25"

6 elements in 3 groups
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Multi-coated EMD
The optics coating improves the image quality
Availability

Product ID 73768
Brand Explore Scientific
Warranty 2 years
EAN 4007922050942
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.38 kg
Description

Mid-range high power eyepieces like the 10mm are instrumental when transitioning through magnifications to observe an object until it is best seen. There are several aspects that have to come together when observing at high powers: good-to-perfect atmospheric seeing conditions; telescope optics that are collimated; a telescope that is acclimated to the ambient temperature; brightness and size of the object being observed are just a few aspects to consider. The observing challenges are high, but the rewards of observing at high power with razor sharp views are unforgettable.

The Explore Scientific 52° LER short focal length eyepiece is excellent flat-field multi-element ocular that can transform your visual astronomy experience. With an apparent field of view of 52 degrees, this eyepiece offer incredible value in a very nice eyepiece.

These eyepieces are the choice for observers wearing glasses – with excellent performance and durability. The rubber inlet and the foldable eyecups make handling and using in the field easy. The patented EMD-coating produces high contrast images and prevents reflexes and ghosting. The argon purging effectively prevents internal fogging, and you don´t have to deal with dirt, fungus or cleansing fluids getting between the lenses. The eyepieces are sealed – this makes sure you will be able to enjoy these eyepieces for many years to come.

Features:

  • Large eye distance, large field and great image sharpness
  • Excellent viewing position for people with glasses
  • Excellent field sharpness even with fast optics
  • 52° apparent field of view
  • Argon-purging prevents internal fogging, the sealing facilitates cleaning
  • Patented EMD-coating to maximize contrast
  • Blackened lens edges to avoid reflexes
  • All eyepieces of this series are parfocal
  • Stainless steel barrel with conical security cutoff

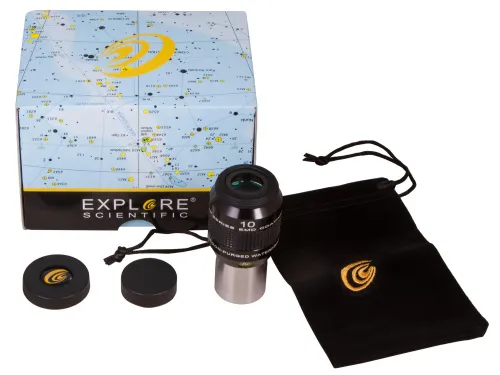

The kit includes:

  • 52° eyepiece
  • Dust covers
  • Protective bag
Specifications
Product ID 73768
Brand Explore Scientific
Warranty 2 years
EAN 4007922050942
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.38 kg
Type standard
Optical scheme 6 elements in 3 groups
Barrel diameter, in 1.25
Optics material optical glass
Lens coating multi-coated EMD
Focal length, mm 10
Field of view, ° 52
Eye relief, mm 16.6
Field stop diameter, mm 9.1
Filter thread
Side edges blackening
Parfocal
Argon-purged
O-ring
Body stainless steel
Waterproof
Degree of moisture/water protection immersion to a depth of 1m up to 30 minutes
Eyecup rubber, foldable
Protective caps included
Pouch/case/bag in set dust cover
