Focal length: 24mm. Eyepiece barrel diameter: 1.25"

6 elements in 4 groups
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated EMD
The optics coating improves the image quality
Availability

Product ID 75772
Brand Explore Scientific
Warranty 2 years
EAN 4007922200187
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.59 kg

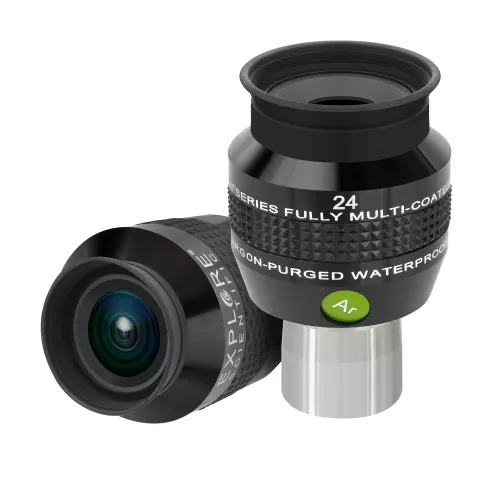

Description

With the introduction of the 68° Series we are pleased to make two important improvements in eyepiece manufacture, the first being 15 layer Enhanced Multi-layer Deposition (EMD™) coatings on all glass-to-air surfaces to gain maximum contrast, and waterproofing the eyepiece with the use of argon gas purging instead of standard nitrogen gas. Although nitrogen is a fine choice that will last for many years, argon is a larger molecule that maintains its protective properties over a wider range of temperatures, and is even more resistant to diffusion thereby further extending the protective waterproof environment of the eyepiece body.

Through computer-optimized design, a careful selection of optical glasses, and enhanced multi-layer deposition coatings, the Explore Scientific 68° Series™ eyepieces produce long eye-relief and ensure high image-correction, a flat field, and high contrast across the entire image field. An excellent choice for those who make extended visual studies of detail with subtle variations of brightness, and for those who must wear glasses while observing.

All 68° series eyepieces are fully EMD (Enhanced Multi-Layer Deposition) coated and edge-blackened to produce superior contrast.

Specifications
Product ID 75772
Brand Explore Scientific
Warranty 2 years
EAN 4007922200187
Package size (LxWxH) 14x11x10 cm
Shipping Weight 0.59 kg
Type super wide-angle
Optical scheme 6 elements in 4 groups
Barrel diameter, in 1.25
Optics material optical glass
Lens coating fully multi-coated EMD
Focal length, mm 24

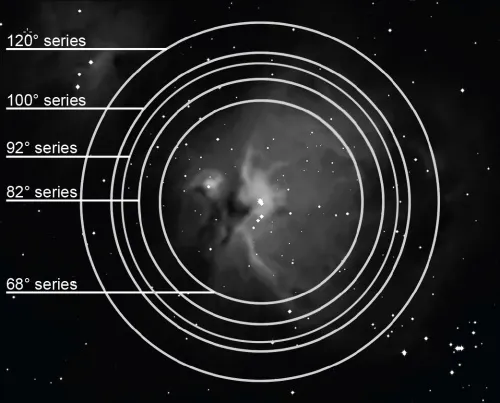

Field of view, ° 68
Eye relief, mm 18.4
Suitable for observations while wearing glasses
Field stop diameter, mm 27.2
Side edges blackening
Parfocal
Argon-purged
Waterproof
Eyecup rubber, foldable

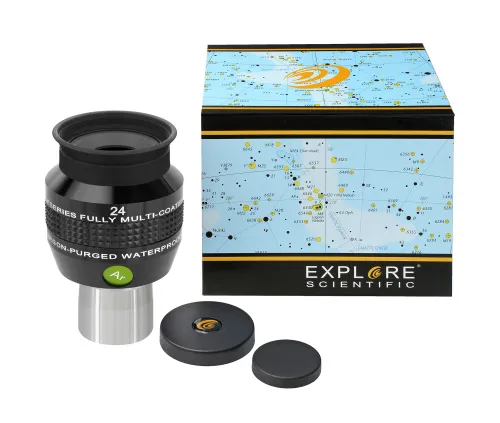

Protective caps included
Pouch/case/bag in set dust cover
