Focal length: 14mm. Field of view: 100°

9 elements in 6 groups
Optical design is a set of optical elements that is assembled in a certain way
2
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated
The optics coating improves the image quality
Availability

Product ID 71082
Brand Explore Scientific
Warranty 2 years
EAN 4007922197524
Shipping Weight 0.89 kg
Type ultra wide-angle

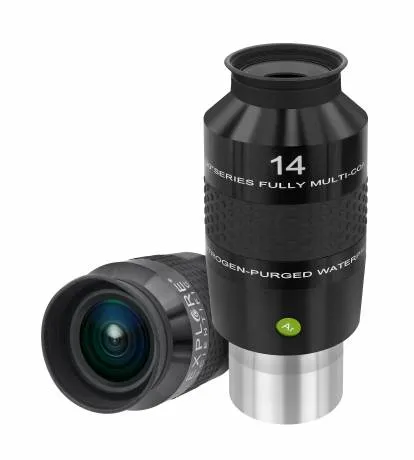

Description

These eyepieces with their huge apparent field of view not only gave the observer a panoramic visual experience, but they relax the eye so the observer could pay attention to subtle details for extended periods. These ultra-wide angle eyepieces played a critical role in the military for aiming at targets, and their long eye-relief counterparts helped reduce eye injury from recoil.

Each 100° Series Argon-Purged Waterproof eyepiece is internally sealed and purged with inert, dry argon gas to prevent internal fogging, to halt the intrusion of fine particulates and fungus. This also maximizes the life of the internal coatings.

To make sure, every 100° eyepiece is tested by submerging them down to 1 meter of water for 30 minutes.

All 100° Series eyepieces are fully multi-coated and edge-blackened to produce maximum contrast.

Specifications
Product ID 71082
Brand Explore Scientific
Warranty 2 years
EAN 4007922197524
Shipping Weight 0.89 kg
Type ultra wide-angle
Optical scheme 9 elements in 6 groups
Barrel diameter, in 2
Lens coating fully multi-coated
Focal length, mm 14
Field of view, ° 100
Eye relief, mm 14.5
Field stop diameter, mm 24.4
Side edges blackening
Argon-purged
Waterproof
Degree of moisture/water protection immersion to a depth of 1m up to 30 minutes
Eyecup rubber, foldable
Protective caps included
