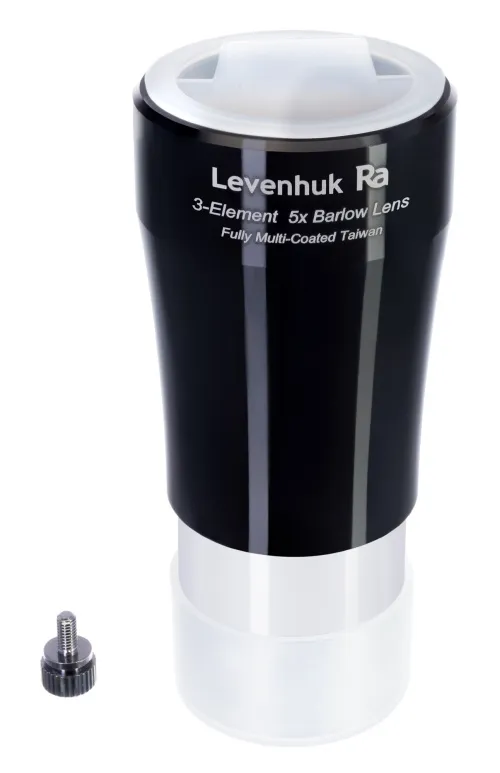

Levenhuk 5x Barlow Lens

The price is valid only for the online store and may differ from the prices in retail stores.

Apochromatic. Magnification: 5x. Barrel diameter: 1.25"

3-element apochromat

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50777
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003702
Package size (LxWxH)	10x5x4 cm
Shipping Weight	0.13 kg

Description

The Levenhuk 5x Barlow lens is a three-element apochromat with a multilayer coating of all the optical elements that increase the magnification of any telescope fivefold. This lens effectively eliminates optical distortion and creates a clear and sharp image across the entire field of view. It is compatible with any telescope or eyepiece. It also features a filter thread.

The barrel diameter is 1.25". This diameter is the most common, and so there will be no compatibility problems.

Features:

Three-element apochromat
Increases the magnification of the telescope fivefold
Fully multi-coated optics
Filter and compression ring thread
1.25" barrel diameter

The kit includes:

Barlow lens
Protective caps – 2 pcs

Specifications

Product ID	50777
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003702
Package size (LxWxH)	10x5x4 cm
Shipping Weight	0.13 kg
Optical scheme	3-element apochromat
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Magnification, x	5
Filter thread	✓
Filter thread	M28.5x0.6mm
Compression ring	1.25"
Protective caps included	✓
Operating temperature range, °C	-5...+35
